UNWINDER & WEB GUIDING
Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensor. 76 mm air expanding mandrel. Max diameter 700 mm – 1000 mm roll capacity.
KISS-330-SD is the high-speed flatbed die cutting machine with Rhyguan's special dancer paper feeding system, enabling impressive speeds of up to 120m/min.
Can add laminator, sheeter, slitter options. Features productivity, stablity and very easy of use.
| KISS-330-SD |
AVAILABLE WIDTH: 330MM/420MM
|
| Max Web Width | 330 mm |
| Max Speed | 120 m / min |
| Max Unwinder dia. | 700 mm |
| Max Rewinder dia. | 700 mm |
| Min Slitting width | 16 mm |
| Accuracy of Adhesive Cutting | ±0.15 mm |
| Air Supply | 0.4~0.6 MPa |
| Total Motor Power | 14 KW |
| Dimension | 2800 × 1260 × 2005 mm |
| Weight | 2800 KGS |
High-speed flatbed die cutting machine with Rhyguan’s special dancer paper feeding system, enabling impressive speeds of up to 120 m/min. Features flexo printing, cold foil, flatbed hot foil, hot laminator, sheeter, slitter etc.

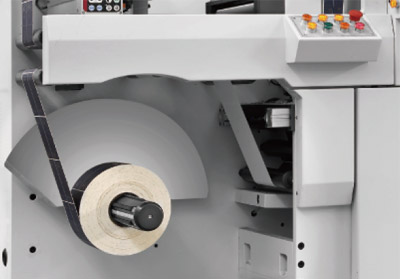

Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensor. 76 mm air expanding mandrel. Max diameter 700 mm – 1000 mm roll capacity.

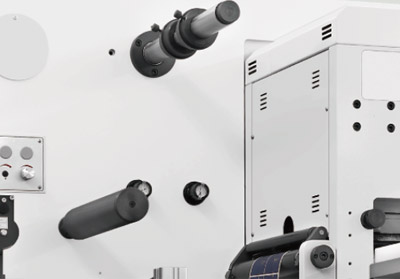

Optional, tension-controlled lamination for liner or linerless substrates.

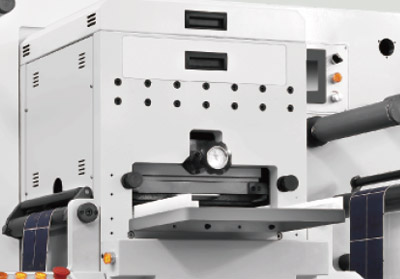

High speed precision flatbed die-cutting unit with maximum speed of 400 stamps/minute. It features a high-precision step-and-repeat of max 300mm for a high speed throughput of max speed of 120m/min. The Servo controlled die-cutting pressure, makes the module also suitable for embossing.
Add shear slitting knifes. Increase productivity with automatic shear slitting to control the knifes from the user-interface. Optional further automation and razorblades.

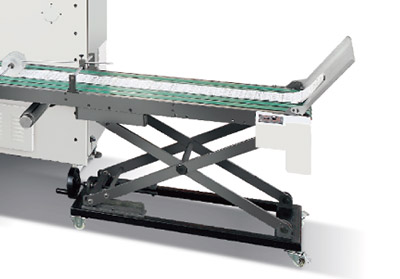

High speed rotary cut-sheet module with a conveyor belt enable sheet cutting and collations. This can be upgraded with an automatic stacking unit and combined with single and dual rewind options for optimal flexibility.
Standard single rewind. Upgrade to dual rewind, or a semi-automatic turret for optimal productivity
