Rhyguan Slitter Rewinder for narrow-web is fully servo-driven and features taper tension control, top brand web guiding, shear slitting, turret rewind, meter and number counting, static eliminator etc. The highest speed can reach 300m/min and has automatic acceleration and deceleration to perverse excellent tension throughout the whole cycle.
Further can add small parts and functions to reach the ultimate configuration for high productivity and quality.
| WON-330 |
AVAILABLE WIDTH: 330MM/450MM/520MM
|
||
| S330 | S450 | S520 | |
| Max Web Width | 330 mm | 450 mm | 520 mm |
| Max Speed | 300 m/min | 300 m/min | 300 m/min |
| Max slit width | 16 mm | 16 mm | 16 mm |
| Max Unwinder dia. | 700 mm | 700 mm | 700 mm |
| Max Rewinder dia. | 400 mm | 400 mm | 400 mm |
| Blades Installed | 6 Sets | 6 Sets | 6 Sets |
| Air Supply | 0.4~0.6 MPa | 0.4~0.6 MPa | 0.4~0.6 MPa |
| Power Supply | 3 PH+N+PE | 3 PH+N+PE | 3 PH+N+PE |
| Total Motor Power | 7 KW | 7 KW | 10 KW |
| Dimension | 1800 × 1200 × 1400 mm | 1800 × 1320 × 1400 mm | 2265 × 1390 × 1400 mm |
| Weight | 1200 KGS | 1300 KGS | 1550 KGS |

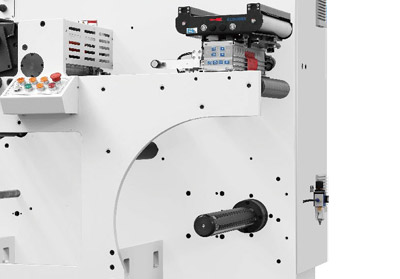

Servo driven unwind for clock wise and anti-clock wise unwinding. Automatic tension control, end-of-roll detection, webguide, integrated splice table, 76mm unwind mandrel. Factory upgrade to unwind rolls with dia = 1000mm and a reel lift possible.

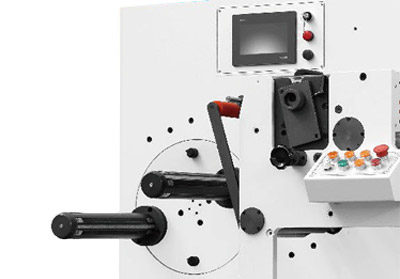

Rewinder with closed-loop tension control system ensures continuous stable tension. 700mm maximum rewind diameter.
High-quality German-made counting sensor - extra accessories needed for transparent film material.

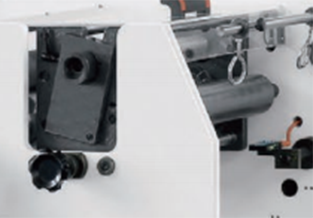

Optional standard 6 shear slitter or razor blade slitter. Easy to install. Features a standard high pressure waste suction system.
