Rhyguan Automatic Slitter Rewinder for narrow-web is fully servo-driven and features taper tension control, top brand web guiding, automatic shear slitting, turret rewind, meter and number counting, static eliminator etc. The highest speed can reach 300m/min and has automatic acceleration and deceleration to perverse excellent tension throughout the whole cycle.
Further can add small parts and functions to reach the ultimate configuration for high productivity and quality.
| WON-330 |
AVAILABLE WIDTH: 330MM/450MM/520MM
|
||
| 330 | 450 | 520 | |
| Max Web Width | 330mm | 450mm | 520mm |
| Max Speed | 300m/min | 300m/min | 300m/min |
| Max Unwind Dia. | 700mm | 700mm | 700mm |
| Max Rewind Dia. | 400mm | 400mm | 400mm |
| Auto Slit Precision | ±0.2mm (automatic) | ±0.2mm (automatic) | ±0.2mm (automatic) |
| ±0.15mm (shear) | ±0.15mm (shear) | ±0.15mm (shear) | |
| ±0.15mm (razor) | ±0.15mm (razor) | ±0.15mm (razor) | |
| Min Slit Width | ≥18mm (automatic) | ≥18mm (automatic) | ≥18mm (automatic) |
| ≥16mm (standard) | ≥16mm (standard) | ≥16mm (standard) | |
| ≥11mm (razor) | ≥11mm (razor) | ≥11mm (razor) | |
| Blades Installed | 6 sets (included) | 6 sets (included) | 6 sets (included) |
| 10 sets (options) | 10 sets (options) | 10 sets (options) | |
| Paper Path | 3m | 3m | 4m |
| Air Supply | 0.4-0.6MPa | 0.4-0.6MPa | 0.4-0.6MPa |
| Power Supply | 3PH+N+PE | 3PH+N+PE | 3PH+N+PE |
| Total Motor Power | 8KW | 9KW | 11KW |
| Dimension | 1750 × 1230 × 1460 | 1750 × 1350 × 1460 | 2300 × 1600 × 1460 |
| Weight | 1300KGS | 1600KGS | 1900KGS |
Servo driven unwind for clock wise and anti-clock wise unwinding. Automatic tension control, end-of-roll detection, webguide, integrated splice table, 76mm unwind mandrel. Factory upgrade to unwind rolls with dia = 1000mm and a reel lift possible.

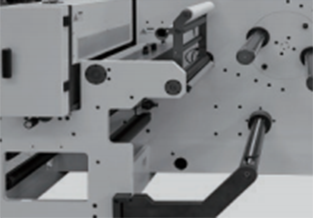

semi-automatic 2-spindle turret which will turn automatically, and lower a pressure arm upon reaching the counter set. Simple, effective and highly productive. Suitable for clock-wise and anti-clockwise rewinding.
High-quality German-made counting sensor - extra accessories needed for clear-on-clear material.

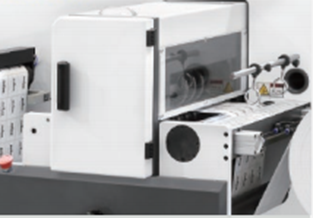

Automatically positioned slitting knifes that are easy to control form the user-interface, including edge-trimming. Maximum of 10 knifes allows for a wide range of slitting possibilities. Optionally add manual razor blade also.
Suitable to rewind thin fifilms with optional Core-Lock difffferential rewind shafts. Slip threshold can be controlled from the touchscreen user panel. Lay-on rollers avoid air-bubbles during rewinding

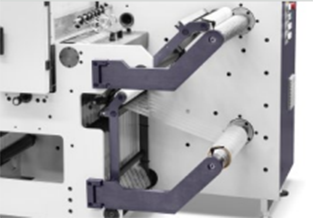

The optional web advance comes with additional clamps. And is available for both the upper and lower rewind. The web advance can also function as a lay-on roller when rewinding filmic materials
