UNWINDER ＆ WEB GUIDING

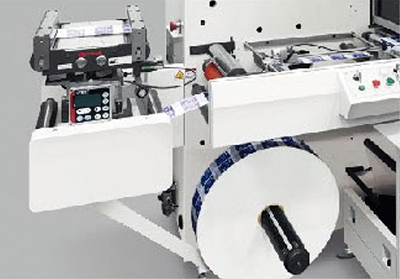

Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensof. 76 mm air expanding mandrel. Max diameter 700 mm- 1000 mm roll capacity.
| IDC-330-DL | OPTION WIDTH 420MM/520MM |
| Max Web Width | 330 mm |
| Max Unwinder dia. | 700 mm |
| Max Rewinder dia. | 700 mm |
| Min Slitting width | 16 mm |
| Accuracy of Adhesive Cutting | ±0.15 mm |
| Registration | Mark Sensor |
| Laser Head | C02 |
| Laser Power | 180 W |
| File format | PLT / DXF |
| Total Motor Power | 9 KW |
| Dimension | 3450 × 1690 × 2135 mm |
| Weight | 2900 KGS |

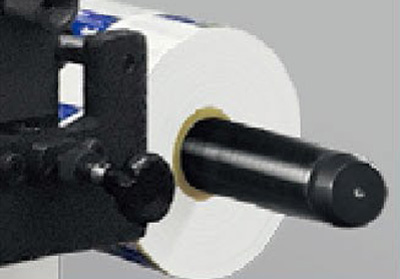

Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensof. 76 mm air expanding mandrel. Max diameter 700 mm- 1000 mm roll capacity.
Independent and servo-driven. Repeat lenghts from 50 mm - 330 mm for semi-rotary, and 190.5 mm - 476.25 mm for full rotary. Magnetic or solid/engraved cylinders.

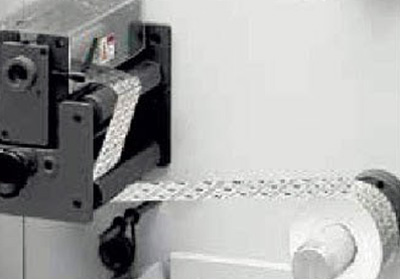

Optional shear slitter or razor blade slitter. Easy to install. Features a standard high pressure waste suction system.

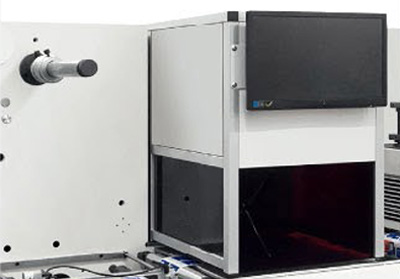

Most famous brand in the world. Highly efficient and flexible application, compatible with PET, PP and more.
Cold-foil and super varnish with two pneumatic shafts and unwind/rewind.
Rewinder with closed-loop tension control system ensures continuous stable tension. 700 mm maximum rewind diameter.
