UNWINDER & WEB GUIDING
Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensor. 76 mm air expanding mandrel. Max diameter 700 mm – 1000 mm roll capacity.
Rhyguan TOP-330-3 is a good entry level label machine for label converters to ask for productive and versatile needs, and also is cost-efficient.
High speed servo driven semi rotary die cutting machine with independent registration and tension control. Operators can easy shift from full rotary to semi rotary, which providing high quality die-cutting of film and label stock material.
Economically inline combination available with Laminator, Slitter and Sheeter options. And slao can upgrade to add Automatic Slitting, varies Rewinding options
| TOP-330-3 | AVAILABLE WIDTH: 330MM/420MM/520MM |
| Max Web Width | 330mm |
| Max Die-cutting speed (full-rotary) | 110m/min(option 180m/min) |
| Max Die-cutting Speed (semi-rotary) | 90m/min |
| Max Unwinder dia. | 800mm |
| Max Rewinder dia. | 800mm |
| Min Slitting width | 16mm |
| Accuracy of Adhesive Cutting | ±0.15mm |
| Accuracy of IML Cutting | ±0.25mm |
| Standard Magnetic Cylinder | 152T |
| Registration | Mark Sensor |
| Dimension | 2650×1750×1800 mm |
| Weight | 2700KGS |

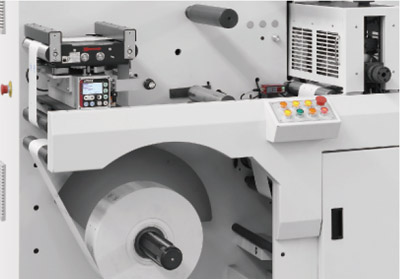

Unwinder with closed-loop tension control. Electronic web guide with ultrasonic edge guide sensor. 76 mm air expanding mandrel. Max diameter 700 mm – 1000 mm roll capacity.
Optional, tension-controlled lamination for liner or linerless substrates.

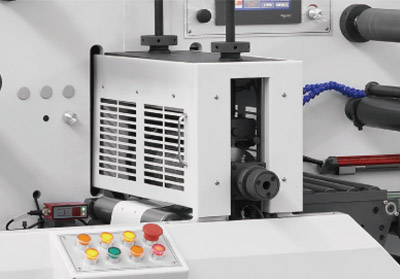

Independent servo driven with Z152 die-cut cylinder and anvil and counter pressure cylinder. Auto pre-positioning, and registration. Semi-rotary die-cut lengths: 50mm-386mm and full rotary: 190.5mm-482mm. Standard with Snowball matrix rewinder.

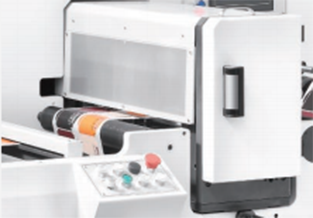

Add shear slitting knifes. Increase productivity with automatic shear slitting to control the knifes from the user-interface. Optional further automation and razorblades.

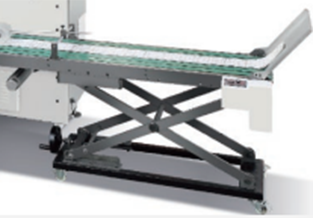

High speed rotary cut-sheet module with a conveyor belt enable sheet cutting and collations. This can be upgraded with an automatic stacking unit and combined with single and dual rewind options for optimal flexibility.

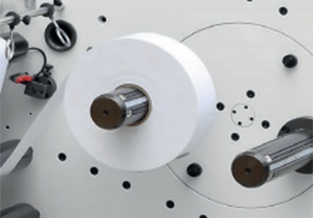

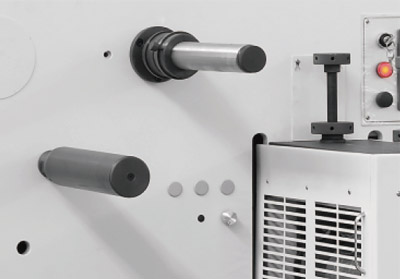

Standard single rewind.Upgrade todual rewind, or a semi-automaticturret for optimal productivity.
