UNWINDER & WEB GUIDING
Unwinder with closed-loop tension control.Electronic web guide with ultrasonic edge guide sensor. 76 mm air expanding mandrel. Optional roll diameter: 700 mm – 1000 mm.
| TOP-330-PLUS-2 | OPTION WIDTH 420MM/520MM |
| Max Web Width | 330 mm |
| Max Die-cutting speed (full-rotary) | 110 m/mim |
| Max Die-cutting Speed (semi-rotary) | 60 m/min |
| Max Flexo Printing Speed (full-rotary) | 90 m/min |
| Max Flexo Printing Speed (semi-rotary) | 60 m/min |
| Accuracy of Flexo Register | ±0.15 mm |
| Max Unwinder dia. | 700 mm |
| Max Rewinder dia. | 700 mm |
| Min Slitting width | 16 mm |
| Accuracy of Adhesive Cutting | ±0.15 mm |
| Accuracy of IML Cutting | ±0.25 mm |
| Total Motor Power | 19 KW ~ 21 KW |
| Registration | Mark Sensor |
| Dimension | 3650×1260×2025 mm |
| Weight | 3600 KGS |

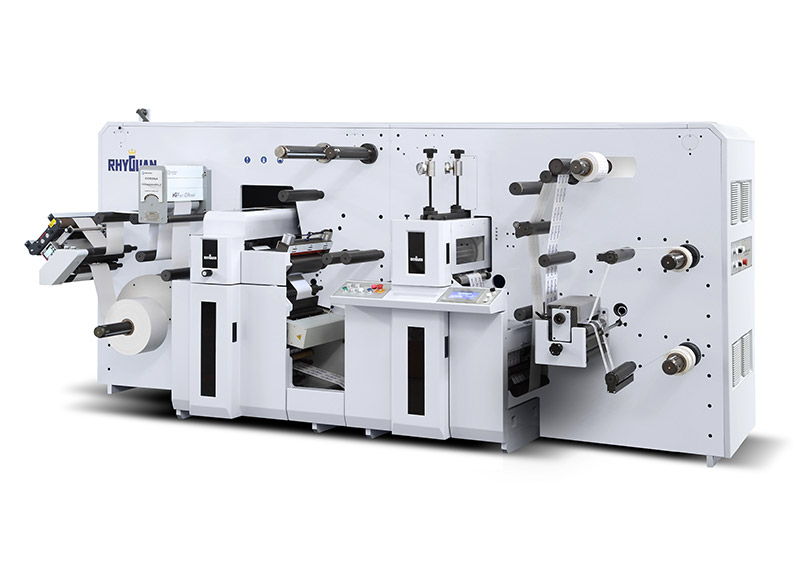

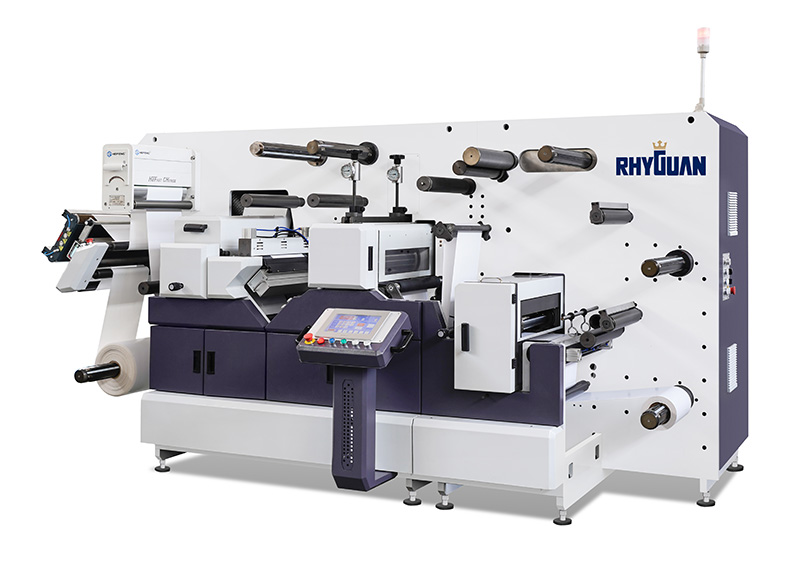

Machine for cost-effificient, high quality converting and fifinishing.
Features winding, cold foiling, super varnishing, Semi or full flflexo printing, semi- or full rotary die cutting, IML system, slitting and sheeting.
The optimal solution for high productivity.
Fully servo driven.

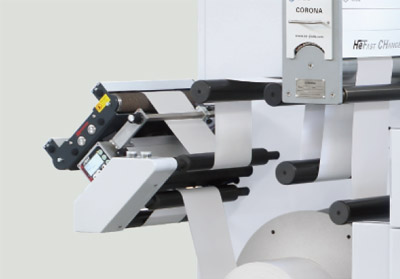

Unwinder with closed-loop tension control.Electronic web guide with ultrasonic edge guide sensor. 76 mm air expanding mandrel. Optional roll diameter: 700 mm – 1000 mm.

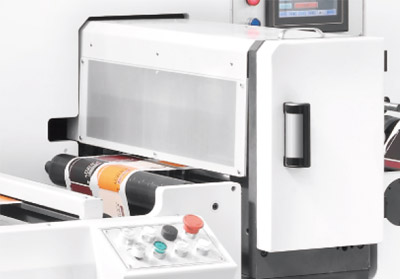

Independent, servo-driven semi-or full rotary printing unit with auto pre-positioning and registration.Optional reverse side printing.Printing repeat lengths of 50 mm – 457 mm.

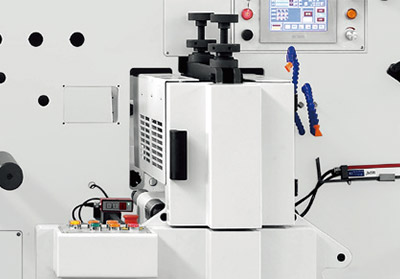

Independent and servo-driven. Repeat lengths from 50 mm-330 mm for semi-rotary, and 190.5 mm – 476.25 mm for full rotary. Magnetic or solid/engraved cylinders.

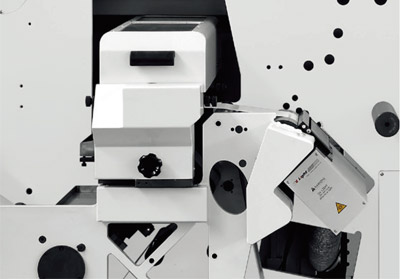

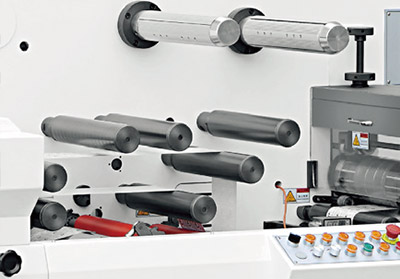

Cold-foil and super varnish with two pneumatic shafts and unwind/rewind.

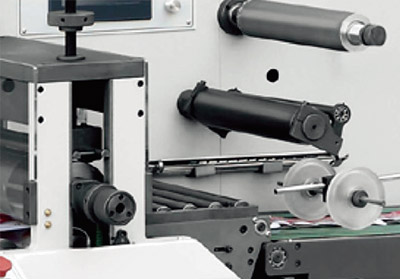

Add shear slitting knives.Increase productivity with automatic shear slitting to control the knives from the user-interface.Optional razor blades.
IML die-cutting system designed for easy installation and removal. Static eliminator in label output collection table works with counter and stepless speed regulation.

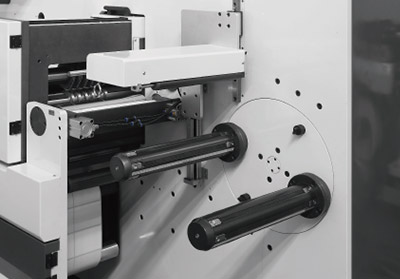

Standard single rewind. Upgrade to dual rewind, or a productive Turret rewinder with buffer and automatic cutting of the web for optimal productivity.
