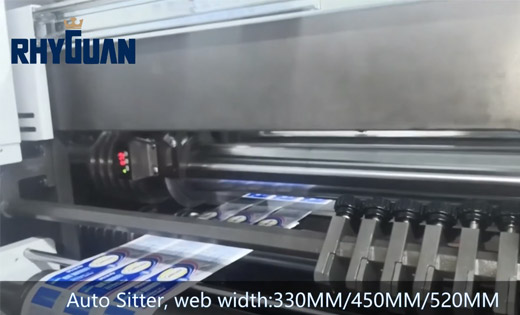

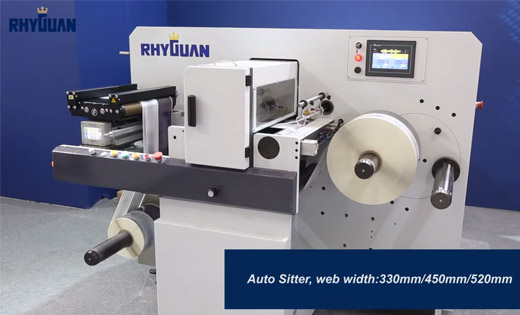

330mm/450mm/520mm  Auto Sitter, web width:330mm/450mm/520mm. Set data on auto slitting screen. Auto set up knives. Set up times: 3 knives 22 sec. Space for max 10 knives. Min slitting distance: 25mm. Unwind. Maxcess web guide (Edge position control). Auto slitting. Options: Razor blades. Trim extraction. Turret rewind. Max speed:300m/min,

Unwind. Maxcess web guide. Corona. Nip roller. Semi/full rotary flexo (can do flexo print or varnish). Quick job change on digital embellishment. Digital embellishment (can do Tactile results Digital spot varnish, digital silk screen, digital foil, digital metal doming all-in-one module). Two or three color foils stamping at one pass, with differential unwind and rewind shafts. Semi/ full rotary die cut. BST inspection system. Auto slitting. Options high productivity turret, with non-stop, buffer, automatic speed-up and automatic cross-cut. Waste matrix.

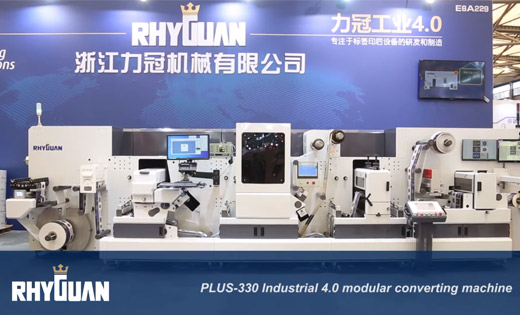

Modular design – Fully Servo driven. Available in Web width 330mm/420mm/520mm. 2 modules with Semi rotary Die-cutting and servo driven “snow-ball” matrix rewinding. 2 modules with Semi rotary Flexo module, with integrated chill-drum and UV curing. 1 module with platform for customer’s preferred brand of inkjet printing with UV curing. 1 Corona treatment station. Webguide with integrated Splice table. Each module has Independent tension control and independent step-and-repeat. Moveable User interface. Operator can select full or semi rotary mode. Table for replacing defect labels. Rotary cut-sheeting with 1.6 meter conveyor belt.

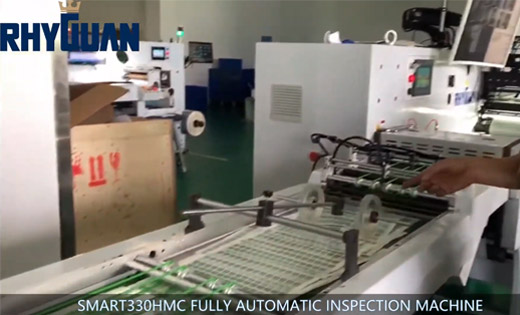

Inspection platform with integrated sheet-cutting. Automatically dispose faulty labels without slowing down. Fully Automatic collection table to automatically collate and stack batches. Web width 330mm/420mm/520mm. Mechanical speed: 300m/min. Open platform suitable for all major brand Inspection systems.

Web width: 330mm/ 450mm/ 520mm Fully Servo Driven Set up times: 3 knives 22 sec Standard number of knives included: 6 sets Space for max 10 knives Min slitting distance: 25mm Knife size: Upper knife dia. 105mm. Lower knife dia. 80mm Options: Razor blades Max speed: 300m/min Also suitable to combine with turret rewind

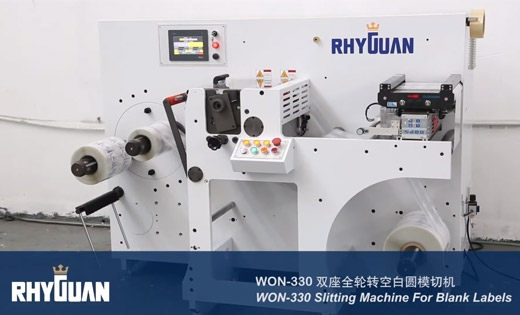

The WON-330 narrow-web slitter rewinder is fully servo-driven and features taper tension control, top brand web guiding, turret rewind, meter and number counting, static eliminator etc. The ultimate configuration for high productivity and quality.

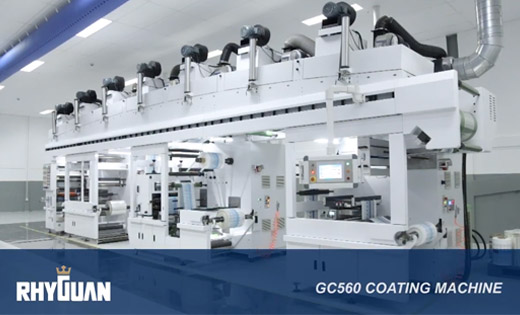

Machine with coating units, offering excellent top coatings, primers, and adhesives for film and paper applications. Reverse printing on transparent materials. 6 meters or more drying length, with machine speeds up to 120 m/min.

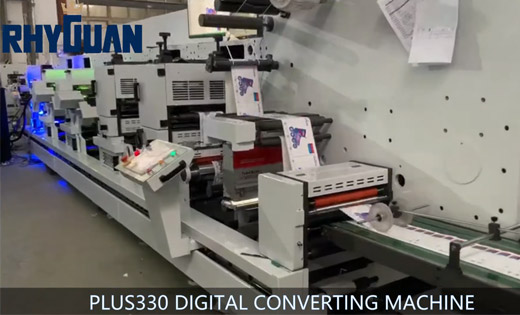

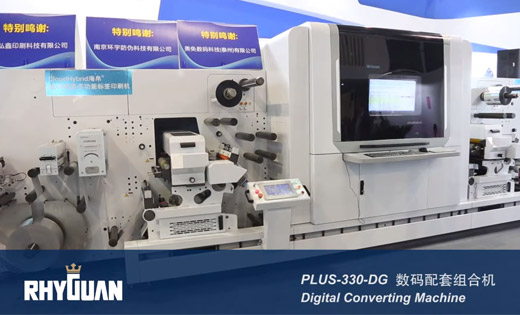

The PLUS-330-DG flexible digital label converting solution offers easy operation, strong adaptability, and high production efficiency. The machine combines closed-loop tension control, double semi/full rotary flexo printing ( the first staiton can be used for top coating before digital module, the second station can be used for varnishing or flexo printing) and laminate together.

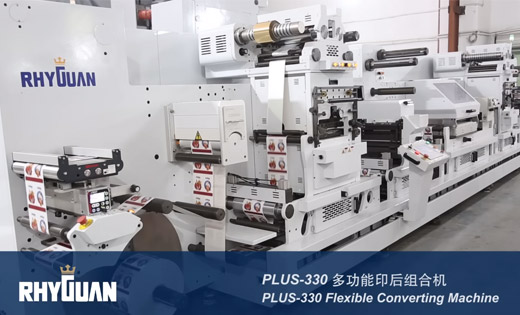

The PLUS 330 label converting solution offers easy operation, strong adaptability, and high production efficiency. The machine combines closed-loop tension control, web guide, flat bed die cutting or hot stamping, hologram register, flat bed silk screen, varnish and printing, semi/full rotary flexo printing, semi/full rotary die cutting.

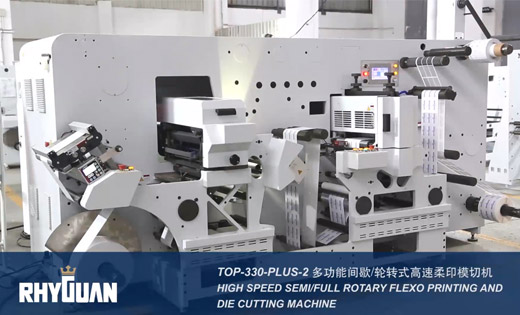

Machine for cost-efficient, high quality converting and finishing. Features winding, cold foiling, super varnishing, semi/full rotary flexo printing, semi/full rotary die cutting, IML system, slitting and sheeting. The optimal solution for high productivity.

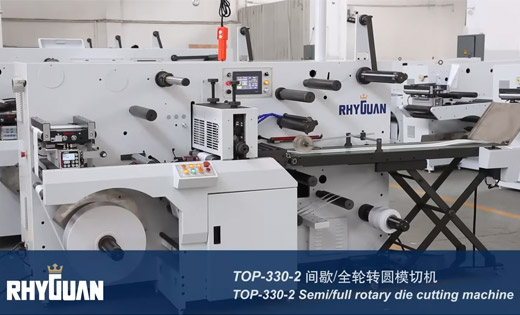

Cost-efficient die cutting solution for in mold labels. Offers easy shift from full rotary to semi-rotary, providing high-quality cutting of film material in small quantities. Top-330-2 is a good entry-level machine for the in-mold label market. Inline combination available with a laminator, slitter and sheeter.

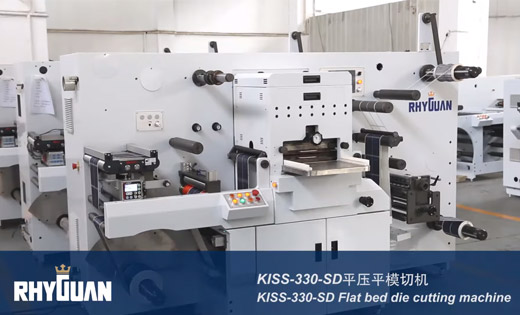

High-speed flatbed die cutting machine with Rhyguan’s special dancer paper feeding system, enabling impressive speeds of up to 120 m/min. Features flexo printing, cold foil, flatbed hot foil, hot laminator, sheeter, slitter etc.
